||产品展示》磁珠插件磁珠 》EMI六孔磁珠YPWBR6H

Wide Band Chokes

Features (六孔磁珠特長)
The wide band choke cores mainly used in the PC boards to filters the EMI from the outsides.(寬頻的扼流線圈主要應用在主機板上防止外來的電磁波干擾)
Ferrite core construction of low cost (低成本之鐵氧體結構)
Applications (
六孔磁珠用途)
Personal Computer and electronic products(電腦及電子產品)



Product Identification (產品識別)
YPWB
   -   Ts (Ex. YP WB R6H - 2.5Ts)
    1         2          3
1. Wide Band Chokes (
寬帶抗流線圈) (YPWB)
2. Hole (
) R6H (六孔磁珠)
3. No. of Turns (
圈數)

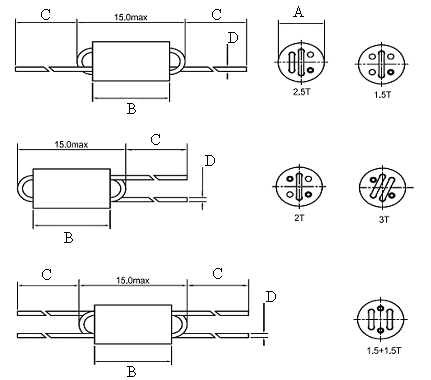

Configurations & Dimensions (六孔磁珠結構圖及規格尺寸)

                                                                                                                                                          Unit In mm

Type
(
型式)

Impedance(Z)
(Ω)(min)
阻抗值

ÆA
±0.5

B
±0.5

C
±3.0

ÆD
±0.05

10MHz

50MHz

100MHz

YP WB R6H - 1.5Ts

170

320

375

6.0

10.0

25.0

0.5 / 0.6

YP WB R6H - 2.5Ts

320

680

580

6.0

10.0

25.0

0.5 / 0.6

YP WB R6H - 3.0Ts

400

800

550

6.0

10.0

25.0

0.5 / 0.6

YP WB R6H - 1.5+1.5Ts

170

320

375

6.0

10.0

25.0

0.5 / 0.6

※Design as Customer’s Requested Specifications. (可依客戶特殊需求設計)
